Please connect the device to an Electrical outlet (95 – 245 V) and turn on your computer. Then follow the steps below:

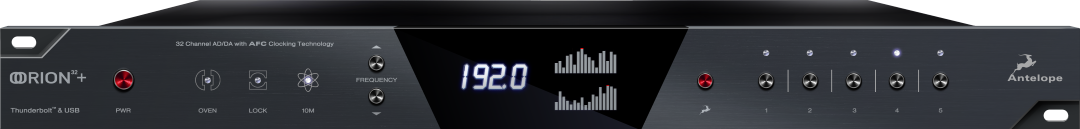

1. Connect a USB 2.0 Type-B (included) or Thunderbolt™ 2 cable to the corresponding ports on the Orion 32+ | Gen. 3 and then to your computer. Depending on the type of connection you choose to use you need to manually set it from the System Menu. The System Menu can be accessed by pressing and holding the Power Button situated on the front panel of the device. Using the "Frequency buttons" navigate to "Comms. Interface" press and hold the bottom "frequency button" which will take you to a submenu. Choose the type of connection you prefer and confirm it by pressing the same bottom "frequency button" again.
Notes:
- USB 2 connection supports up to 32 I/O audio channels. Thunderbolt™ 2 connection supports up to 64 I/O audio channels.
- Should you need a Thunderbolt 3 connection, please purchase a Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter.
2. Visit www.antelopeaudio.com and log in or create a customer account.
3. Download and install the latest Antelope Audio Launcher and Driver for your operating system (Windows 10 / macOS 10.12 or later) from the ‘Downloads’ section of the Orion 32+ | Gen. 3 page.
Note: For Thunderbolt™ connection on Windows, download and install the latest Antelope Audio Windows Thunderbolt driver.
4. Open Antelope Launcher and make sure your Orion 32+ | Gen. 3 and update your device with the latest Bundle Version.
Note: If your device isn’t recognized by Antelope Launcher, you can have a look at this video.
5. Launch the Orion 32+ | Gen. 3 Control Panel from the Antelope Launcher and follow the device activation procedure.
Note: Bypass any security prompts from your operating system, e.g. Windows Defender Firewall and macOS alerts.
6. Register your device with the ‘Antelope Audio Registration Wizard’ by following the on-screen instructions.
7. Launch your preferred DAW and:
- Choose the Orion 32+ | Gen. 3 as your main input and output device.
- Make sure your DAW and operating system sample rates match the device sample rate.
Need any help?
Visit the Antelope Audio Customer Support page for further information.
Configuring for Windows 10
Windows 10 needs a few tweaks to get everything up and running:
1. Right-click the Volume button on the taskbar, and then choose "Open Sound Settings" in the menu. Then click on "Sound Control Panel".
2. Select the ‘Playback’ tab and make sure the Orion Studio Synergy Core is set as the default playback device. Choose the device and click "Properties".
3. Enter the ‘Supported Formats’ tab and place checkmarks next to all the available sample rates.
4. Enter the ‘Enhancements’ tab and make sure all enhancements are disabled.
5. Enter the ‘Advanced’ tab and choose any of the available “2 channels, 24-bit” modes. Click "OK" to close the window.
6. Enter the ‘Recording’ tab. Make sure the Orion 32+ | Gen. 3 is set as the default recording device and all enhancements are disabled. Click ‘OK’ to close the window.
Tips
- If you are experiencing interruptions or failure when using your DAW and trying to playback audio from your OS at the same time, make sure that the device sample rate matches the one of your DAW session.
- You can disable the device and enable it again from the ‘Playback’ tab to refresh the driver. This will be similar to disconnecting and re-connecting your device, which makes Windows reset the playback configuration of the applications you are using.
- In some cases, disabling the ‘Exclusive mode’ functionality from the ‘Advanced’ tab in ‘Playback’ and 'Recording' Properties might help when running multiple playback applications at the same time.
- Disabling the 32kHz sample rate isn’t mandatory, but it might help in general.
Further Reading
Antelope Audio Knowledge Base - Windows 10 Optimization
Configuring for macOS 10.14 Mojave (or later)
The new security settings introduced in macOS 10.14 Mojave may result in no input signal reaching your DAW, despite having everything set up correctly.
These steps apply when using the Orion 32+ | Gen. 3 in a DAW for the first time:
1. Launch your DAW and choose Orion 32+ | Gen. 3 as an input device. The following dialog box will appear (if using Ableton Live 10 Suite, for example):
3. Click 'OK' and your DAW should function normally.
However, if the events above did not occur for some reason, or you are using multiple DAWs, you must do a manual tweak for each in 'Security & Privacy' settings:
1. Click the 'Apple' symbol and choose "System Preferences". Head to the 'Security & Privacy' settings menu.
2. Click the 'Privacy' tab. In the column on the left, choose ‘Microphone’. Make sure there's a checkmark next to any DAW you want to use.
Note: You may have to click the padlock symbol in the bottom left corner and enter your password to make changes.
